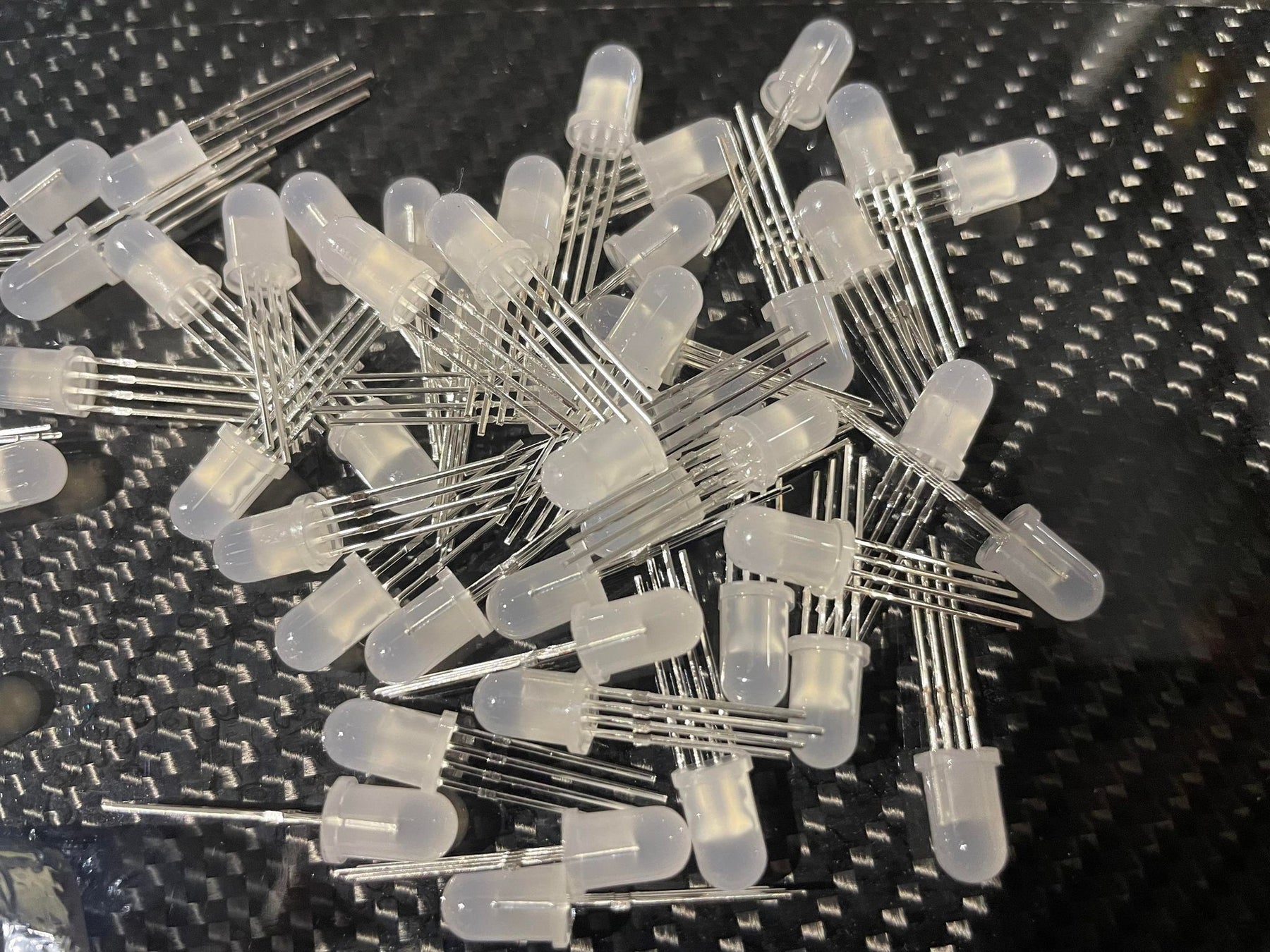

5mm RoundTop RGB Addressable LEDs Illumaesthetic-Spec
- Ships Worldwide
- Parts in stock, ready for production
One of the most important pieces when it comes to building tail lights is component selection. When making a selection on LED lights, finding a balance between durability and cost-effectiveness is important. Illumaesthetic is now releasing their own LEDs to the public. Originally they were special order LED's spec'd out specifically for in-house use.
These are NOT the same LEDs you find on eBay and Amazon. Why take the risk and waste a weeks worth of work on bad LEDs? Our Illumaesthetic spec'd LEDs have been proven on Illumaesthetic products over the years on cars that are regularly driven. Which means you can have the peace of mind knowing that you don't have to worry about component quality.

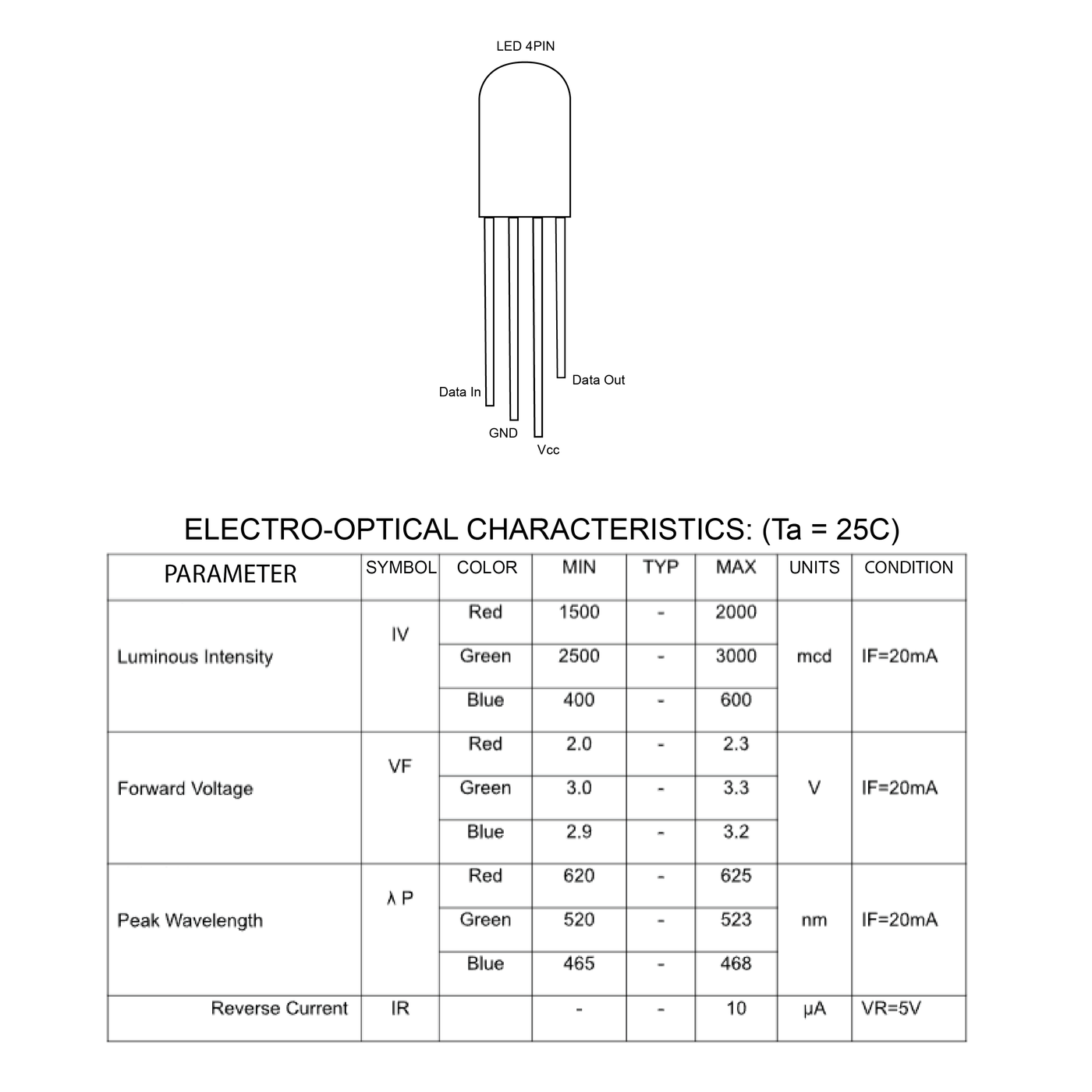

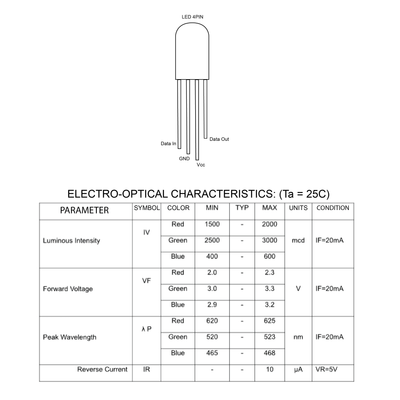

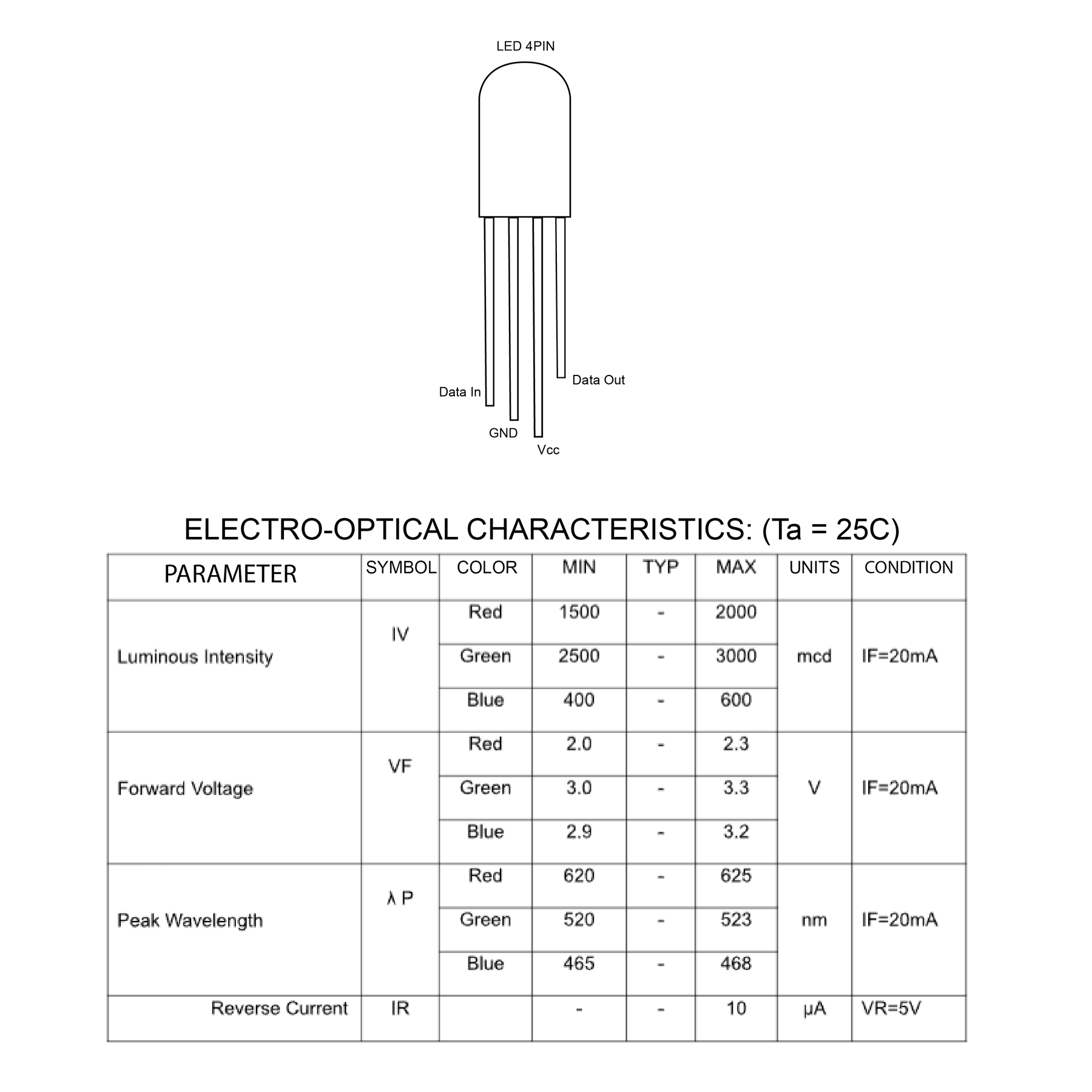

Data Sheet/Specs:
HKA5812 Chip
Luminous Intensity (if 20mA):
R - 1500-2000 mcd
G - 2500-3000 mcd
B - 400-600 mcd
Forward Voltage (if 20mA):
R - 2.0-2.3V
G - 3.0-3.3V
B - 2.9-3.2V
VDD - 3.5-5.5V
Demo Videos (used by actual builders):
Product Features:
- Produced Exclusively for Illumaesthetic
- Expected Life Span: ~100,000 hours

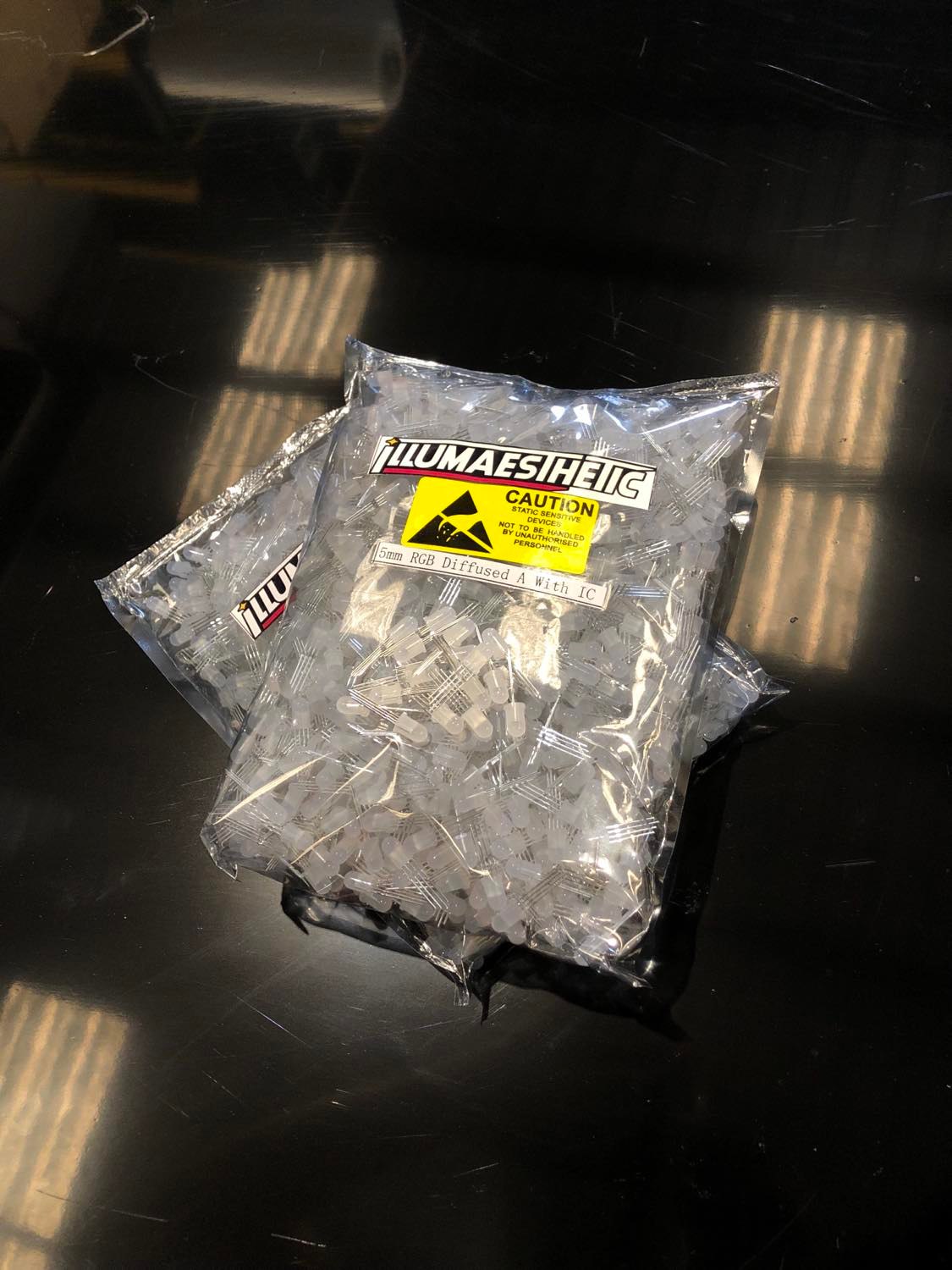

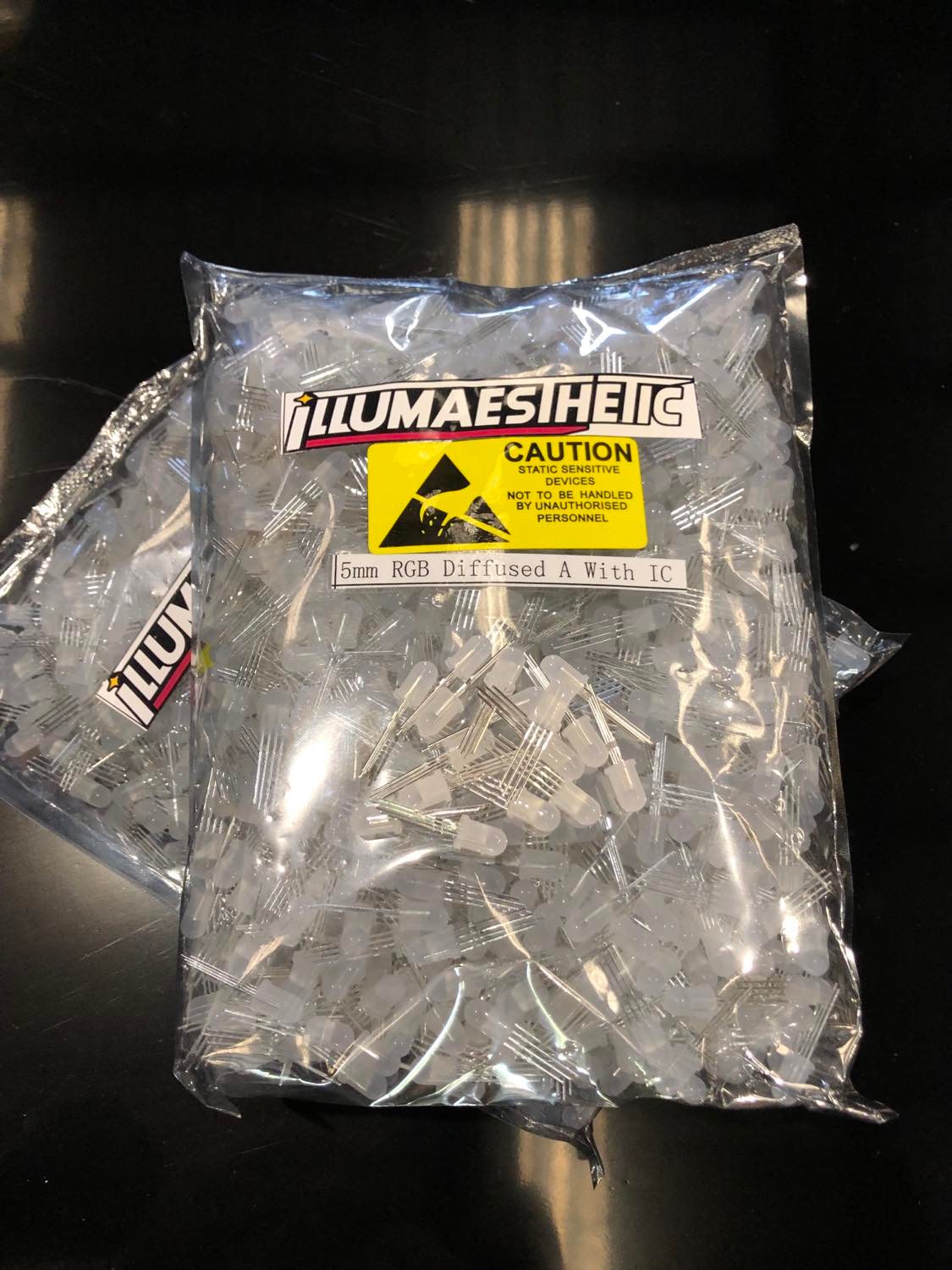

- Sold in bags of 1000, or in batches of 100
- Ultra-Bright & Low Temperature
- Low Power Consumption
- IC Addressable
- Tri-color common anode w/ built-in IC
Specifications:
- Chipset: PG1288
- Input Voltage: 2.0-2.3V DC (Red), 3.0-3.3V (Green), 2.9-3.2V DC (Green)
- Forward Current: 10 uA @ 5V
- Viewing Angle: 30 - 35 degrees
- Intensity: 2,000 (red), 3000 (green), 600 (blue) mcd
Notes:
For maximum shelf life, please make sure they are stored in a cool, dry area, and resealed in the bag after opening. For large wholesale orders, please email us directly.
Disclaimer:
These LED's are NOT DOT approved. Please check with your local laws for compliance. These are an early release product meant for professionals and builders. We do not offer after sales support on this product except to provide warranty claims.
